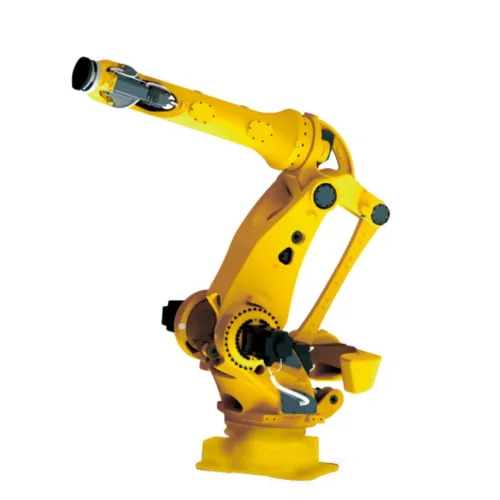

ER350-3300

ER350-3300

Category

BC collaborative robots are suitable for 3C electronics, medicine, packaging, palletizing, assembly, etc. The picture on the right shows the automatic pickup application of a mask machine provided by our company for a customer. Due to its lightweight structure and high speed, it is fully capable of handling the rhythm of the production of the mask machine and placing the requirements, which greatly improves the production efficiency.

Description

Robot typeMulti-articulated robots
Axes6
Installation formGround
Range of actionFirst axis±180°
Maximum speedSecond axis-60˚~+105˚
Third axis-30˚~+135˚
Fourth axis±200°
Fifth axis±115°
Sixth axis±360°
First axis80°/sec
Second axis90°/sec
Third axis90°/sec
Fourth axis100°/sec
Fifth axis80°/sec
Sixth axis140°/sec
Liftable weight (wrist)350kg
Driving methodElectrical servo drive using AC servo motors
Repeat Positioning Accuracy±0.1mm
Maximum Arm Spread3300mm
Robot quality2980KG
